High speed flying probe tester-W12

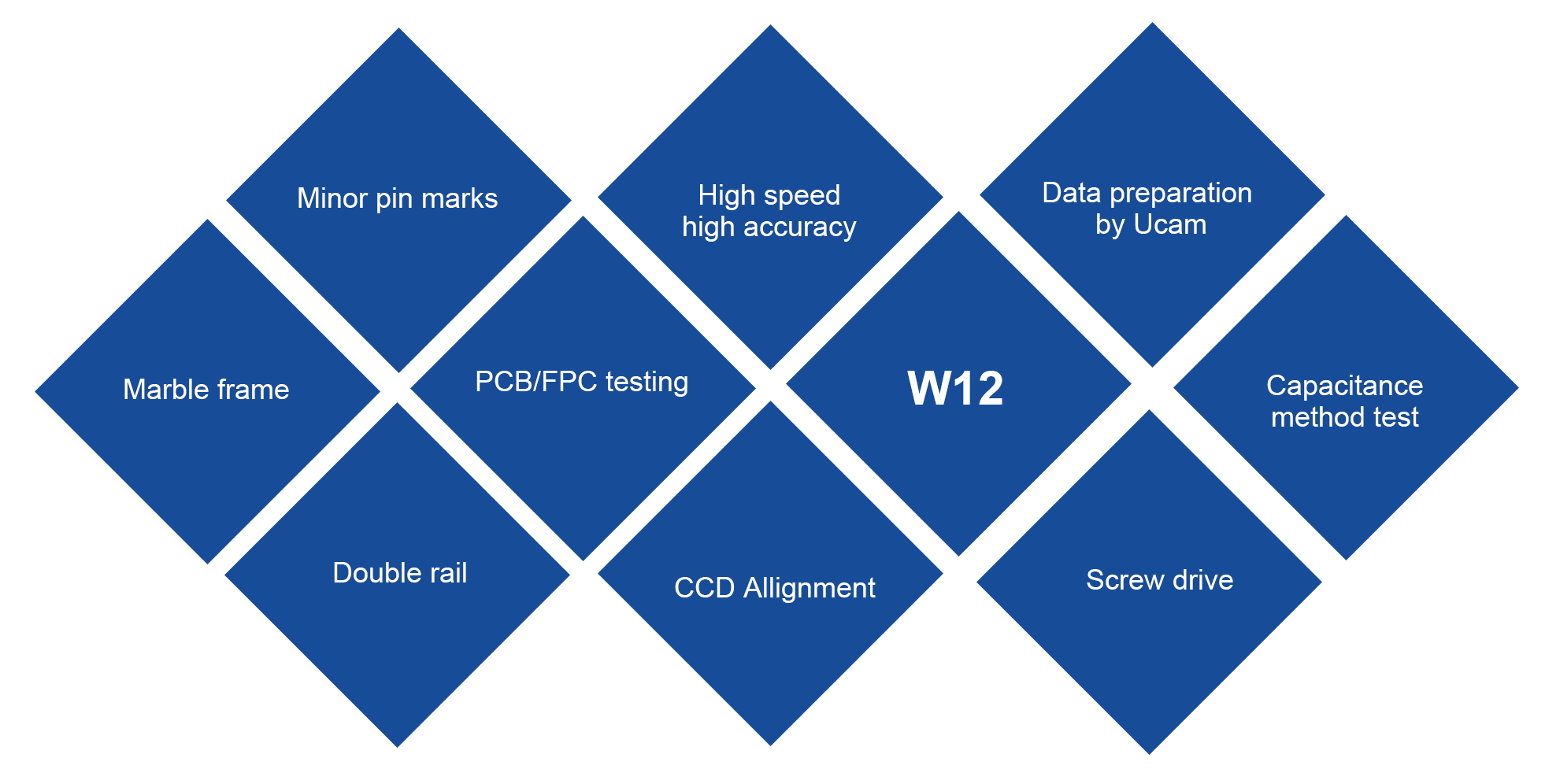

The front and rear high-definition CCD probes can accurately locate the center of the testing point and check error messages clearly.High-precision screw drive can conduct insulation and continuity tests for PCB boards with high component layout,Multi-layers,high wiring density and testing point of short distance. Using the "true value comparison positioning method" can monitor the test process and defect points in real time to ensure the accuracy of the test. Not limited by the net grid, but flexible,fast and efficient.

* Principle: Use a probe instead of a multimeter to measure whether the circuit is on or short-circuited with other circuits by moving the probe and touching each network measuring point.

* Application: High-speed flying probe tester is suitable for prototype and small volumn products.

Products Feature

High speed flying probe tester
ModelW12
Operation systemWIN7/WIN10/WIN XP
Max.test area620*520 mm
730*630mm( Optional）
Min.test areaNo Limit
Max.board thickness6mm
Min.board thickness0.1mm
Allignment resolution5սm
Min. pad size0.1mm(4mil)
Min.pad space0.1mm(4mil)
Max.testin speed1500-3000/min
Probe No.2 front 2 rear
Probe pressure
5-30mil (Optional)
Data formatMNF1 & MNF2
Data SoftwareUcam
CCD1 front 1 rear
Testing pressure20V-500V
Testing current5mA-200mA
Continuity testing range2ohm-10kohm
Isolation testing range5Mohm-500Mohm
Equivalent test range0.1pF-10mF
Air supplyAir compressor pressure 3Par
Temperature22℃-26℃
Power supply220V
Weight800KG
Dimension1800*760*1800 mm
