High speed flying probe tester-V8
High speed flying probe tester-V8
The front and rear high-definition CCD probes can accurately locate the center of the testing point and check error messages clearly.High-precision screw drive can conduct insulation and continuity tests for PCB boards with high component layout,Multi-layers,high wiring density and testing point of short distance. Using the "true value comparison positioning method" can monitor the test process and defect points in real time to ensure the accuracy of the test. Not limited by the net grid,but flexible,fast and efficient.

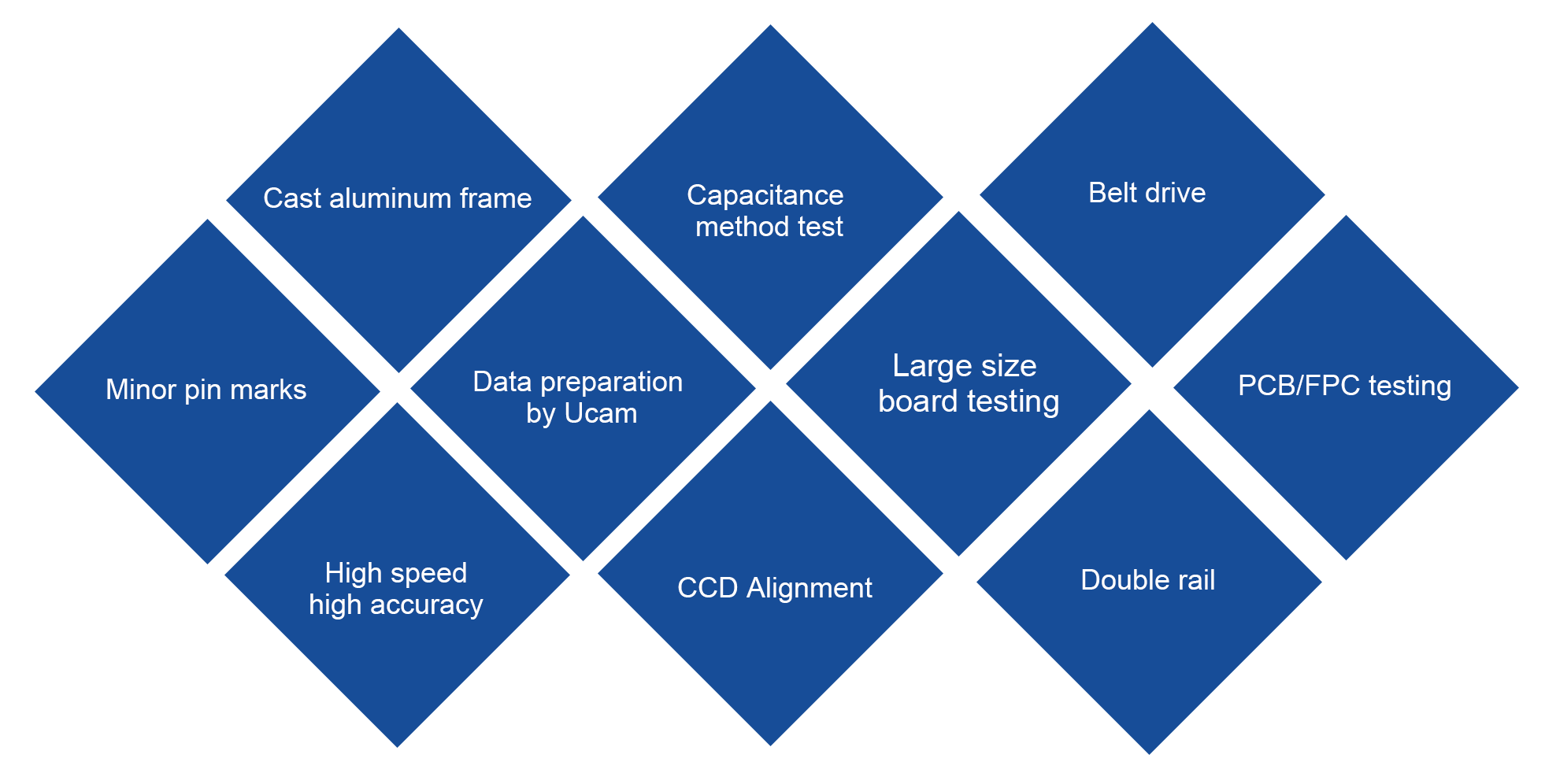

Products Feature
* Coupling
* Mold casting, the overall structure won't deformed
* Transmission shaft
* Ultra-wide belt 15mm (the width of belt affects machine's performance)
* 100Kg large chassis to ensure the stability and accuracy of the test
| High speed flying probe tester V8 | ||
| Model | V8 | |
| Operation system | WIN10 | |
| Max.test area | 620*520mm | |
| Min.test area | No Limit | |
| Max.board thickness | 6mm | |
| Min.board thickness | 0.1mm | |
| Allignment resolution | 5սm | |
| Min. pad size | 0.12mm(5mil) | |
| Min.pad space | 0.12mm(5mil) | |
| Max.testin speed | 1500-2500/min | |
| Probe No. | 2 front 2 rear | |
| Probe pressure | 5-30mil (Optional) | |
| Data format | MNF1 & MNF2 | |
| Data Software | Ucam | |
| CCD | 1 front 1 rear | |
| Testing pressure | 20V-500V | |
| Testing current | 5mA-200mA | |
| Continuity testing range | 2ohm-10kohm | |
| Isolation testing range | 5Mohm-500Mohm | |
| Equivalent test range | 0.1pF-10mF | |
| Air supply | Air compressor pressure 3Par | |
| Temperature | 22℃-26℃ | |
| Power supply | 220V | |
| Weight | 800KG | |
| Dimension | 1800*760*1800 mm | |
